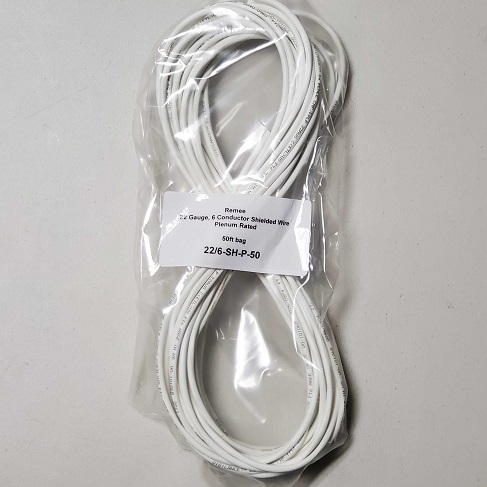

22 Gauge, 6 Conductor Shielded Plenum Wire. 50ft 100ft or 200ft Bag
$24.00
Product Overview
22 gauge, 6 conductor copper stranded wire, shielded Plenum available in cuts of 50 feet, 100 feet and 200 feet. Required for connecting proximity readers to access control panels, installing intercom systems, etc. (shielded to prevent interference)
Technical Specifications
- Wire Gauge: 22 AWG
- Conductors: 6
- Conductor Type: Copper, stranded
- Shielding: Shielded
- Rating: Plenum
- Length: 50 ft, 100 ft or 200 ft bags
- Jacket: White (subject to change), Remguard Plenum Polymer
- Listings and Codes: NEC Article 800, UL Subject 444 Type CMP, C(ETL)US
- Models: 22/6-SH-P-50, 22/6-SH-P-100, 22/6-SH-P-200
- Manufacturer Model: 725228SL2W (Remee)
Also Known As:
22-6-SH-P-50, 22-6-SH-P-100, 22-6-SH-P-200, Remee 725228SL2WManufacturer:
RemeeManufacturer Warranty:
1 YearModel Number:
22/6-SH-P-Plenum Rated:
YesWire Conductors:
6Wire Gauge:
22Wire Length:
SelectableWire Shielding:
Shielded
1 Question asked on 22 Gauge, 6 Conductor Shielded Plenum Wire. 50ft 100ft or 200ft Bag •
Q
Bill Spadafora • 03/18/2026, 0:20:53 AM
On average, what is the OD of the jacket. Thank you for your help and time.
A
03/19/2026, 6:22:44 PM
Overall thickness of the cable: 0.165 in
